3D Touch Levelling Sensor Standard

3D Touch Levelling Sensor Standard

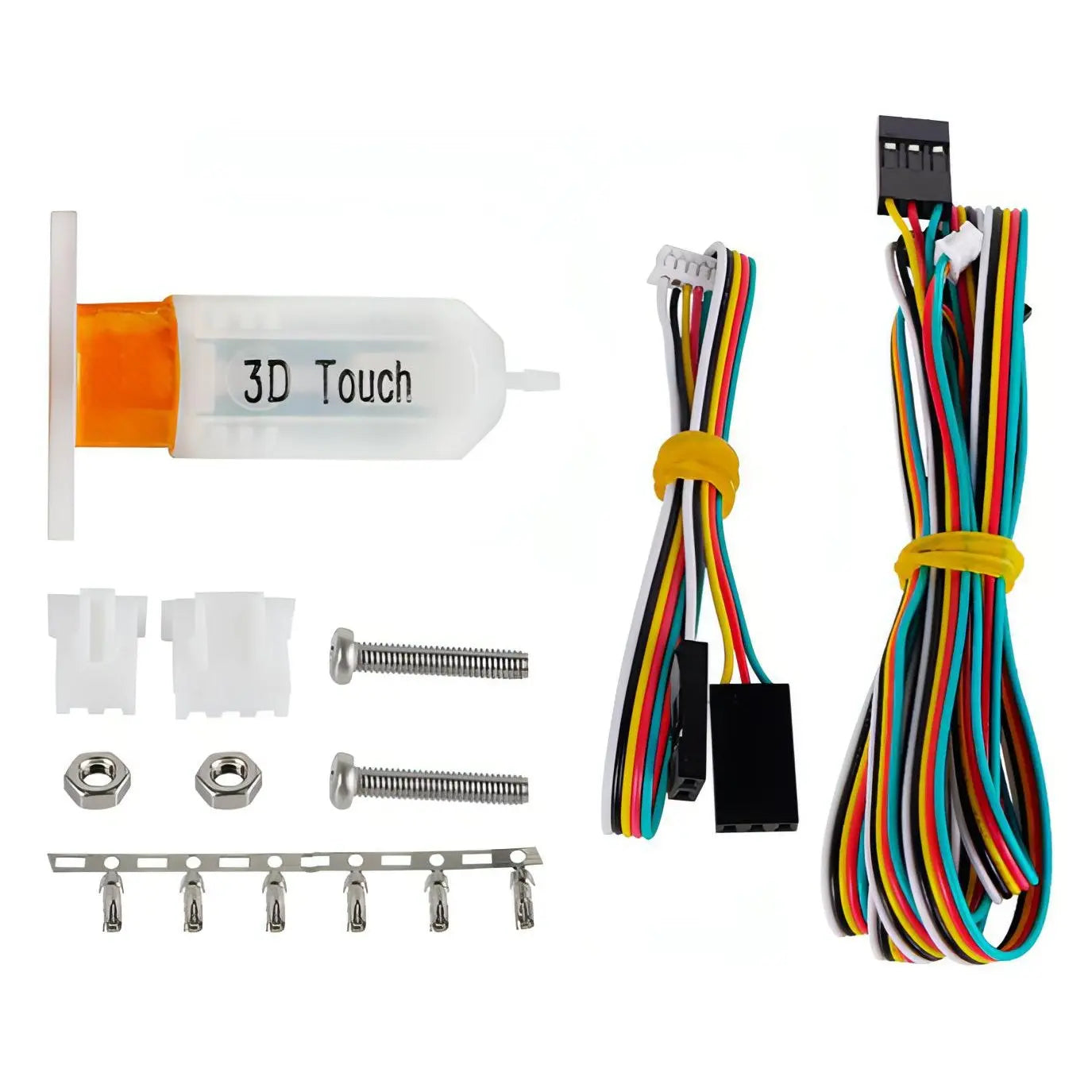

3D Touch V2.0 auto bed levelling sensor for automatic bed levelling on your 3d printers. The 3D Touch sensor works perfectly on various 3D printer heatbed surfaces, including PEI heatbed surface, sticker bed, tempered glass heatbed plate, metal bed, etc.

Compatible with Kingroon KP3S, Kingroon KP5M, KP5L, Creality Ender 3 Pro, Anet A8 3d printers.

3D Touch Wiring:

Green line: -, GND
Red line: + 5V
Yellow line: signal line
White: signal line
Black: ground

Specifications:

Voltage: 5V
current: 15mA
Max Current (peak):300mA
3D Touch Size: 26*11.5*47mm
Probe Size: 2.95*2.95*35.1mm
Cable Length: 200mm & 1000mm
Shell Material: PC
Shell colour: white translucent
