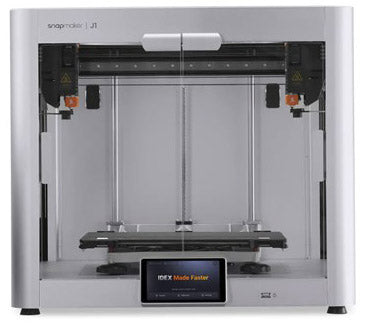

Snapmaker J1 IDEX 3D Filament Printer
Snapmaker J1 IDEX 3D Filament Printer
Snapmaker J1 IDEX 3D Filament Printer
TL4638
This advanced FDM 3D printer by Snapmaker has independent dual extruders (IDEX) that provide many benefits. Firstly, independent extruders enable you to print with two colours or two different materials at the same time, which reduces waste, cross-contamination and the need to swap filaments mid-print. You can use the Copy Mode to print two identical objects in one go, or take advantage of the Mirror Mode to print a mirrored symmetrical model at the same time.

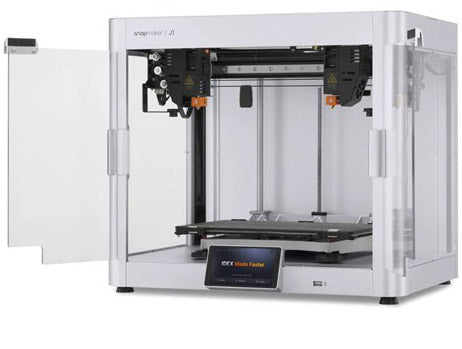

These options can save you over half of the time it would take using a single extruder printer. In Backup Mode, the second extruder stands by to take over the first extruder should there be a hiccup during the print process. Thanks to its advanced control algorithm and vibration compensation, the J1 can print at impressive speeds up to 350mm/s and achieve a maximum acceleration of 10,000mm/s². Amazing features include a heated bed, with tool-free bed levelling, hands-free XY offset calibration, and easily managed Z offset calibration by way of a large thumbwheel. Industrial-grade rails ensure smooth and steady movements, and 300°C hot ends support high-temperature filaments. Other smarts include cornering optimisation to prevent problems like corner bulges, and a 5” LCD colour touchscreen with an intuitive interface. All housed in a sturdy aluminium alloy frame with one-piece diecast upper frame and base, and seethrough side panels and doors to get a great view while it is printing. Supplied with everything you need to get started.
FEATURES:
• Up to 10,000 mm/s² acceleration and up to 350 mm/s printing speed
• Breakaway supports and dissolvable supports for effortless removal
• Copy Mode and Mirror Mode that double productivity
• 300°C hot ends & 100°C heated bed
• Print volume 300 × 200 × 200 mm³
• Easy-swap hot ends with multi-diameters
• Double-sided PEI Glass Plate

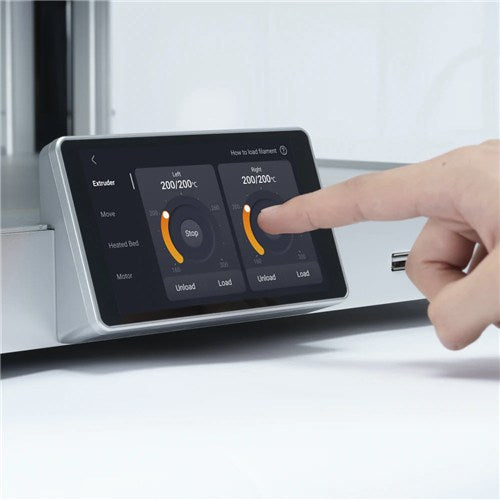

• 5-inch Intuitive Touchscreen
• Built-in nozzle wipers
SPECIFICATIONS:
Extruders: Independent Dual Extruders (IDEX)
Build Volume:
- Default Mode & Backup Mode: 300 × 200 × 200mm
- Copy Mode: 160 × 200 × 200mm
- Mirror Mode: 150 × 200 × 200mm
OS: Android
Memory: 1GB RAM, 8GB eMMC
Screen: 5” Touchscreen LCD (1280x720)
Max. Nozzle Temp: 300°C
Layer Height: 0.05-0.3mm
Operating noise: <50dB
Filament: 1.75(Dia.)mm
Supported materials:
PLA, ABS, HIPS, PC, TPU, TPE, PETG, ASA, PP, PVA, PA, PA-GF, PA-CF
Dimensions: 539(W) x 464(H) x 401(D)mm
Weight: 25kg
